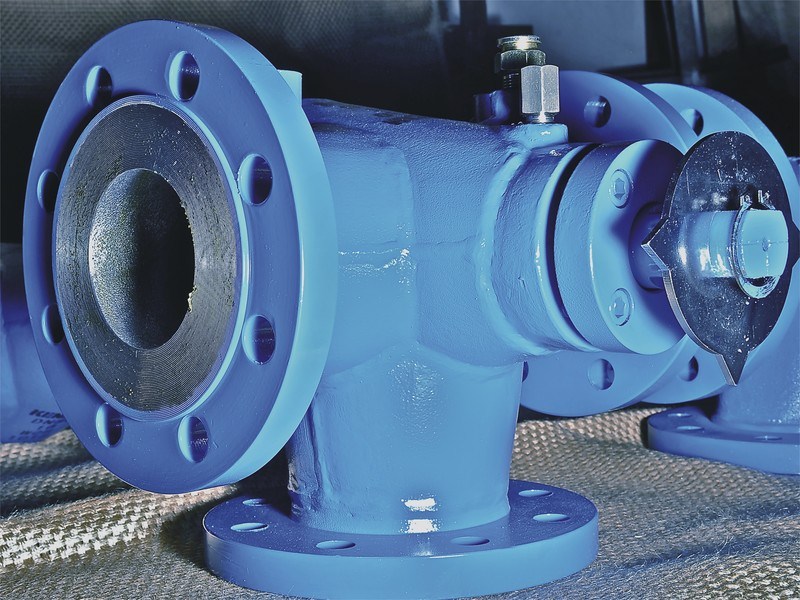

Vatac 3
Way Plug Valves, this specification
covers the design, manufacture and testing of4
in. (100 mm)
through 12 in. (300mm) 3-Way 100% Ported Tapered Plug Valves
Tapered Plug Valves suitable for water or wastewater service with pressures up
to 175 psig(1200 kPa) or 250 psig (1725 kPa) when specified Plug Valves shall
be concentric, non-lubricated with resilient encapsulated plugs capable of 90,
180 and 360 degree worm gear actuator.
Standards
Compliance and Features:
» Design
& Manufactured to API 599, ANSI/AWWA C517, ANSI 372
» Face to Face dimensions to ASME B16.10
» Flanged Ends ANSIB16.1, Class 125.
» Mechanical Joint ANSI/AWWA C111/A21.11
» Inspect & Tested to API 598
» Size Ranges from 1/2” thru 24”
» Pressure Ratings from Class 150 to Class 300
» Ends Connections in
Flanged R.F, MJ, Threaded NPT, BSPT, Welded S.W, B.W and Grooved
» Body Materials available in Cast or Forged Carbon Steel
ASTM A216 WCB, WCC, ASTM A105N, Low Carbon Steel LCB, LCC, LF2, Alloy Steel
WC6, WC9, F11, F22, Stainless Steel CF8, CF8M, CF3, CF3M,
A182 F304, F304L, F316, F316L, Duplex & Super Duplex Steel A890 GR.4A,5Aor F51, Special Materials in Monel, Alu. Bronze C95800, 95600 etc.
» Trim Materials available in 13%Cr, F11, F22, SS304, SS304L, SS316, SS316Land other specials
» Actuations can be equipped with Handwheel, Gear Device
