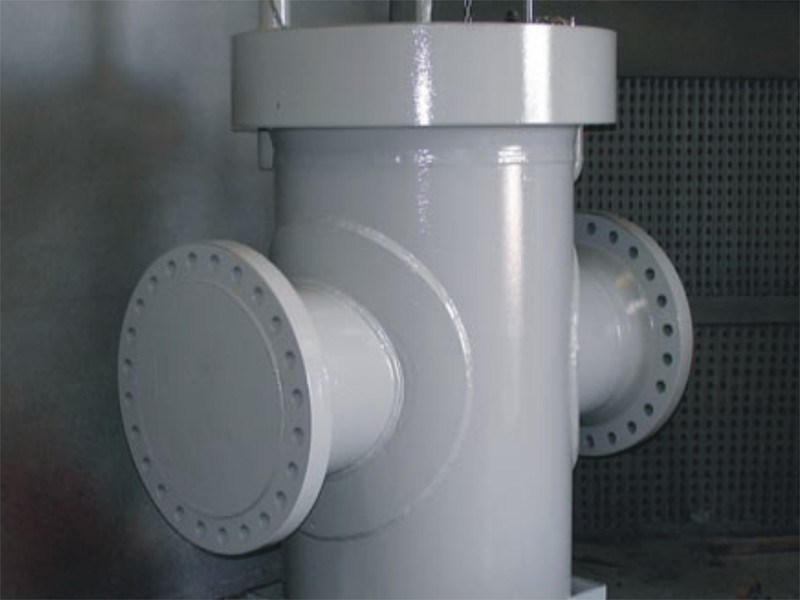

Vatac Cast Basket Strainers are
available in cast steel and cast stainless steel. The screen is in the form of
basket, with a lifting handle, so that all particulate captured and retained by
the screen can be easily removed for disposal.
»
Manufactured under ISO 9001:2008 Management System
» Strainers are equipped with RF flanges in
accordance with ASME B16.5.
» Strainer body meets ASME B16.5 and ASME
B16.34.
» All strainers equipped with bolted
cover flanges that utilize a flat gasket seal
» Strainer cover flanges are in
dimensional accordance with ASME B16.5.
» Over-the-top flow design complete with
machined basket seats eliminates the possibility of
dirty fluid by-pass.
» Standard basket construction is 304 SS
perforated plate.
» Recommended minimum straining level is
40 microns.
» Recommended for installation in
horizontal pipelines.
» Generous screen area and properly
proportioned outer annulus minimize pressure drop while maximizing time between
cleanings.
» Size Ranges: 1 1/2” through 24”
» Pressure Ratings: ANSI #150 to 2500, PN16~PN420
» Standards compliance: ASME B16.34, DIN 3202, ASME B16.10,
MSS SP-71, BS EN558, ASME B16.1 CLASS 125, ASME B16.5 CL150, EN1092, EN12226,
ISO 5208, API 598 or equivalents
» Materials: A234 WPB, SS304, SS316, SS304L, SS316Land etc
» Ends Connections: Flanged(FF, RF, RTJ), Welded Ends and
Screwed to international standards
» Quick open or with
handwheel
» NPT drain connection furnished with
plug
