Cast Iron Gate Valve

Designed and manufactured to the most updated international standards ASME B16.34, BS 5156, DIN 3352, AWWA C509 or equivalents
OnLine Service
Skype Online PDF Download
【Prev Products】 【Next Products】
Description

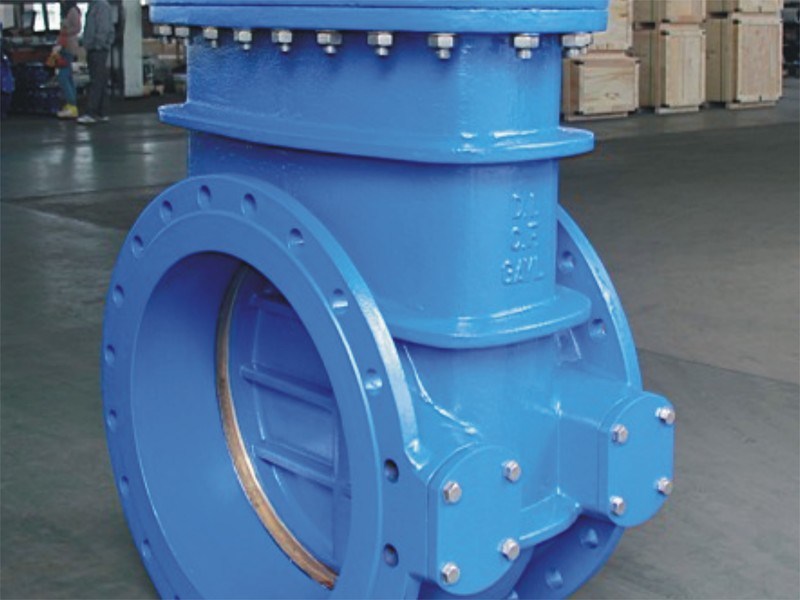

Vatac Cast Iron Gate Valves are available both in Resilient seated and I Metal Seated Gate Valves. Designed and manufactured to the most updated international standards ASME B16.34, BS 5156, DIN 3352, AWWA C509 or equivalents. With standard features of Rising or Non Rising Stem, Bolted Bonnet and Stem Nut operation.

Main Features and Advantages
» SizeRanges: 2” through 4”
» Pressure Ratings: CL125, CL150
» Standards compliance: API 6D, BS 5156, ASME B16.34, DIN 3352, AWWA C509, DIN3202 or equivalents
» Materials: Cast Iron, Ductile Iron
» Seat Materials: NBR, EPDM, Brass or Bronze(Renewable)
» Ends Connections: Threaded, Welded Ends, Flanged and Clamp to international standards
» Optional Stem Nut or hand wheel
» Optional Direct Mounting to ISO 5211
» Epoxy Coating
» Full Port or Regular Bore
