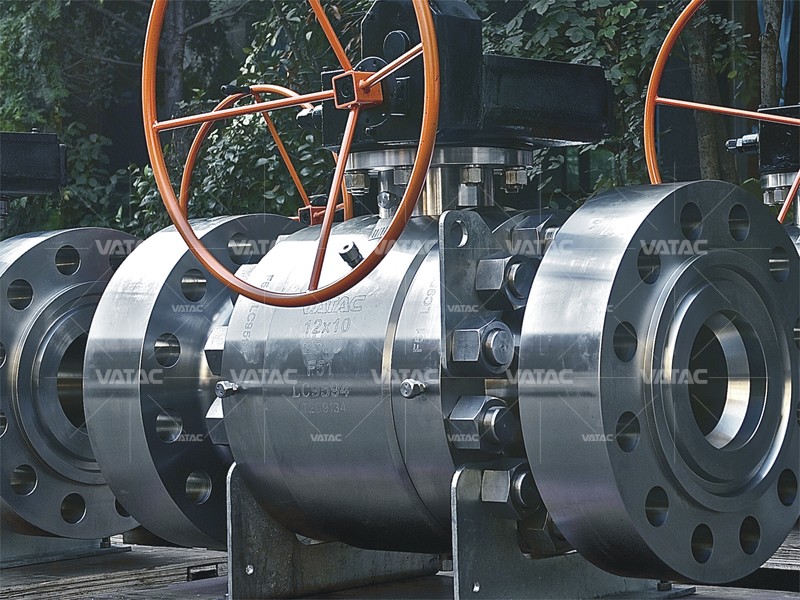

Forged Trunnion Ball Valve

With all advantages of Trunnion Mounted Ball Valves, Vatac Forged Steel Line are available in types of Two Piece Split Body & Three Piece Bolted
OnLine Service
Skype Online PDF Download
【Prev Products】 【Next Products】
Description


With all advantages of Trunnion Mounted Ball Valves, Vatac Forged Steel Line are available in types of Two Piece Split Body & Three Piece Bolted Body. The forging material can ensure sufficient rigidity and strength under maximum rated operation pressure. Without inherent flaw of cast. Enough wall thickness of separate body and adaptation of high strength tie bolts are convenient for valve maintenance and sufficient to bear the stress of pipe.The internal parts of valve are carefully designed and selected to ensure reliability under all kinds of work conditions.

All Vatac Trunnion Mounted Forged Ball Valves are designed and manufactured to the most updated international standards API 6D, ASME B16.34, BS 5351 or equivalents. With standard features of Fire Safe, Anti-static and Stem Blow-out Proof
» SizeRanges: 1/2” through 40”
» Pressure Ratings: ANSI #150 to 2500
» Standards compliance: API 6D, BS 5351, ASME B16.34, DIN 3202 or equivalents
» Materials: Forged Carbon Steel, Stainless Steel, Duplex or Other Specials
» Ends Connections: Flanged R.F, RTJ, Welded or Victaulic
» Optional Locking Device or Stem Extension
» Optional Direct Mounting to ISO 5211
» Full Port or Regular Bore
» Double Block and Bleed
