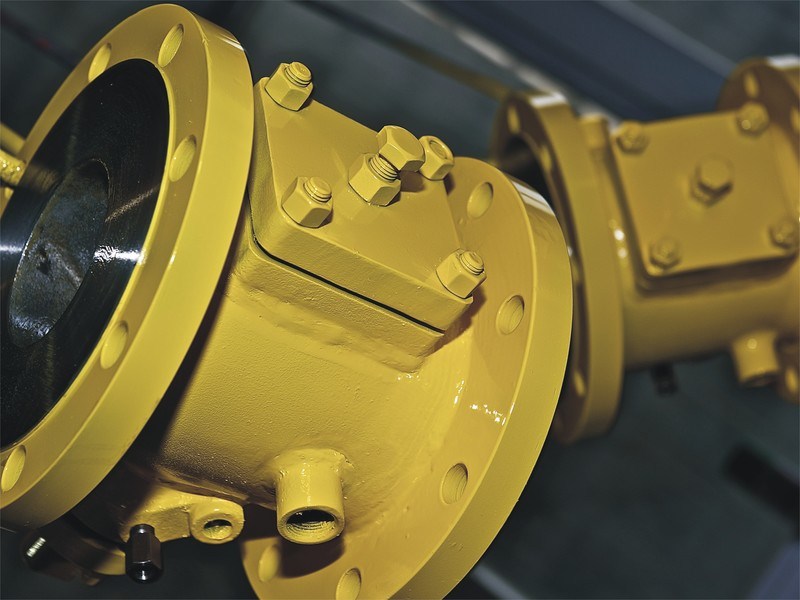

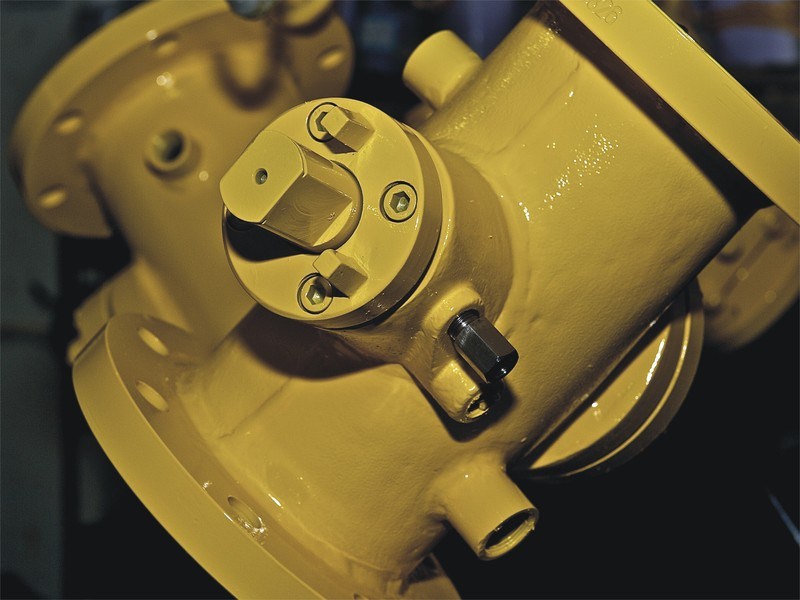

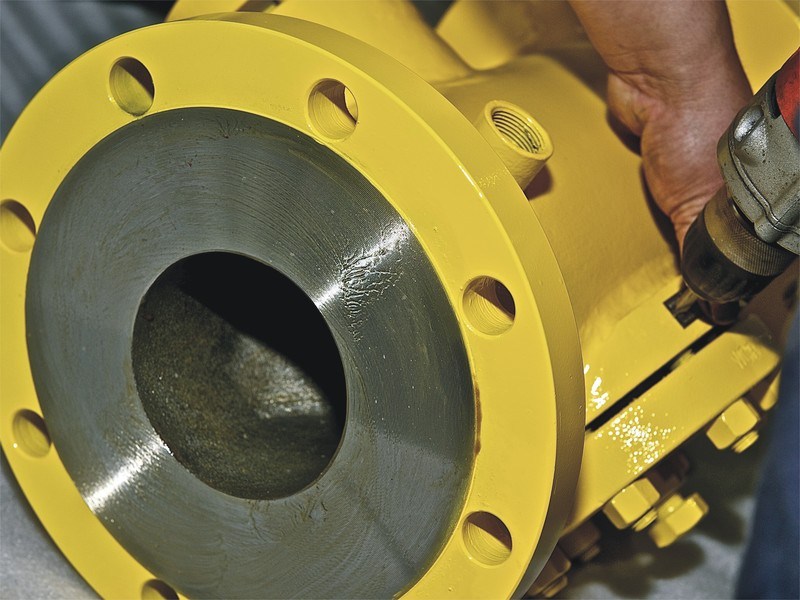

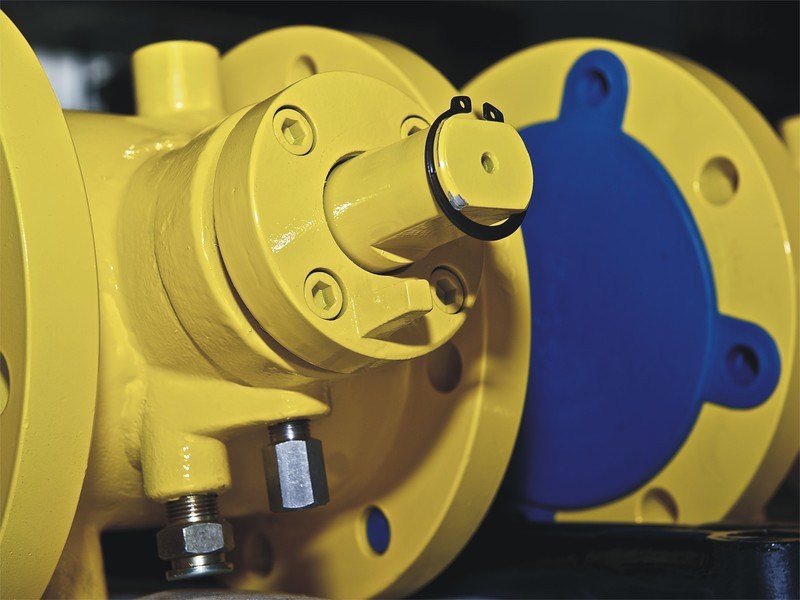

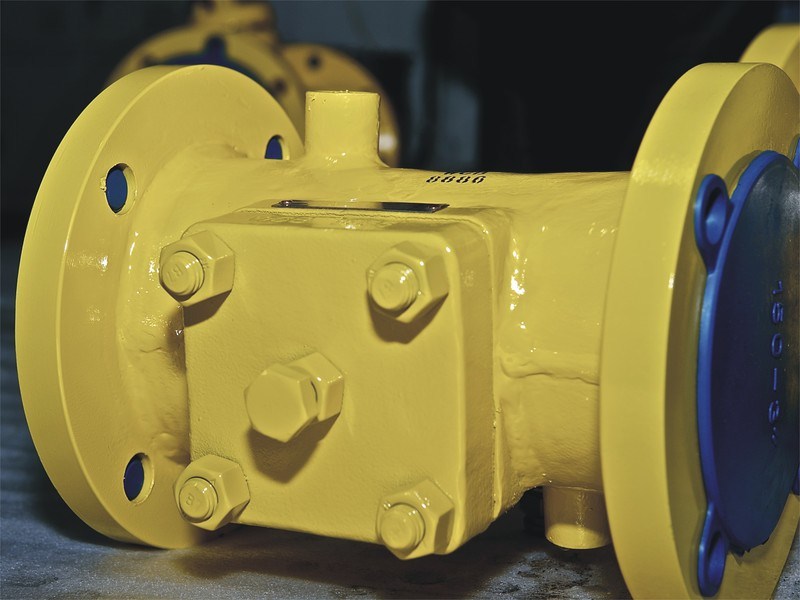

Vatac offers a broad line of partial and fully jacketed sleeved plug valves. Vatac plug valves offer superior in-line sealing, redundant stem seals and 360 degree port retaining lips. Jacketed valves are used where temperature control of the media is critical.
Bi-directional flow, simple actuation, lightweight, compact design, and multiport configurations all facilitate improved system design. Sleeved Plug Valves from Vatac are designed and manufactured strictly to International Standards API 599, ASME B16.34 or DIN3202, Featured with compact structure & Low emission service.
Standards Compliance and Design Features:
» Design & Manufactured to API 599, ASME B16.34 or DIN3202
» P.T Ratings to ASME B16.34
» Face to Face dimensions to ASME B16.10
» Flanged Ends to ASME B16.5
» Butt-weld Ends to ASME B16.25
» Threaded Ends to ASME B1.20.1
» Socket-weld Ends to ASME B16.11
» Valves Marking to MSS SP-25
» Inspect & Tested to API 598
» Size Ranges from 1/2” thru 20”
» Pressure Ratings from Class 150 to Class 300, PN10 to PN50
» Ends Connections in Flanged R.F or RTJ, Threaded NPT, BSPT, Welded S.W, B.W and Grooved
» Body Materials available in Cast or Forged Carbon Steel ASTM A216 WCB, WCC, ASTM A105N, Low Carbon Steel LCB, LCC, LF2, Alloy Steel WC6, WC9, F11, F22, Stainless Steel CF8, CF8M, CF3, CF3M, A182 F304, F304L, F316, F316L, Duplex & Super Duplex Steel A890 GR. 4A, 5A or F51, Special Materials in Monel, Alu. Bronze C95800, 95600 etc.
» Trim Materials available in 13%Cr, F11, F22, SS304, SS304L, SS316, SS316L and other specials
» Actuations can be equipped with Handwheel, Gear Device, Electric / Pneumatic or Hydraulic Actuators
Vatac offers Jacketed Plug Valves including, but not limited to
▲ Partial Steam Jacket Plug Valve ▲Full Jacket Plug Valve
