A V port ball valve has either a 'v' shaped ball or
a 'v' shaped seat. This allows the orifice to be opened and closed in a more
controlled manner with a closer to linear flow characteristic. When the valve
is in the closed position and opening is commenced the small end of the 'v' is
opened first allowing stable flow control during this stage. This type of
design requires a generally more robust construction due to higher velocities
of the fluids, which might damage a standard valve.

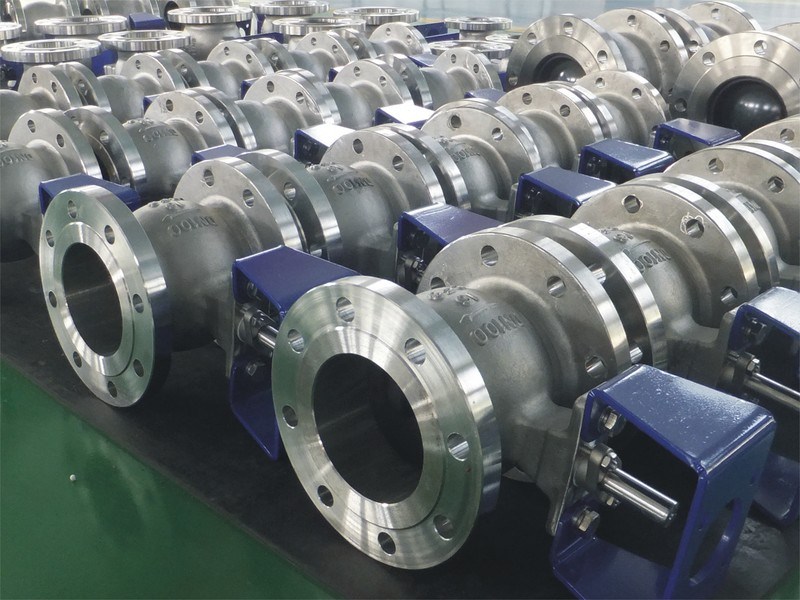

The Vatac V-Port Ball Valves are quarter-turn
control ball valves for accurate throttling control of fibrous suspension
applications plus clean, dirty viscous, and corrosives liquids and gases. They
are designed to meet the highest industry standards for dynamic performance.
Flanged or flangeless designs meet ANSI or ISA face-to-face dimensions. V-Port
Ball Valve design features include blow-out proof shaft protection, high flow
capacity, splined ball-to-shaft connection for ease of maintenance and zero backlashes.
Seat options include flexible metal, rigid metal and PTFE seats.
DESIGNING FEATURES
» Direct Mounting with Pneumatic or Electric Actuators
» Pressure Class: ANSI#150, #300, PN10 to PN64
» Cast Carbon Steel or Stainless Steel Body
» Stainless Steel Trim in Gr. 304 or 316
» Size Ranges: DN15 through DN300
» Body Styles: Flanged Ends.
» Easy maintenance
»
ASME B16.34, DIN 3202, API 6D
» ASME B16.10, MSS SP-71, BS EN558
» ASME B16.1 CLASS 125, ASME B16.5 CL150, EN1092, EN12226
» ISO 5208, API 598
