Metal Seat Wafer Knife Gate Valve

Vatac Metal Seat Wafer Knife Gate Valves are designed as metal to metal seat for high Temperature and rough medium , Ends connections in Wafer
OnLine Service
Skype Online PDF Download
【Prev Products】 【Next Products】
Description

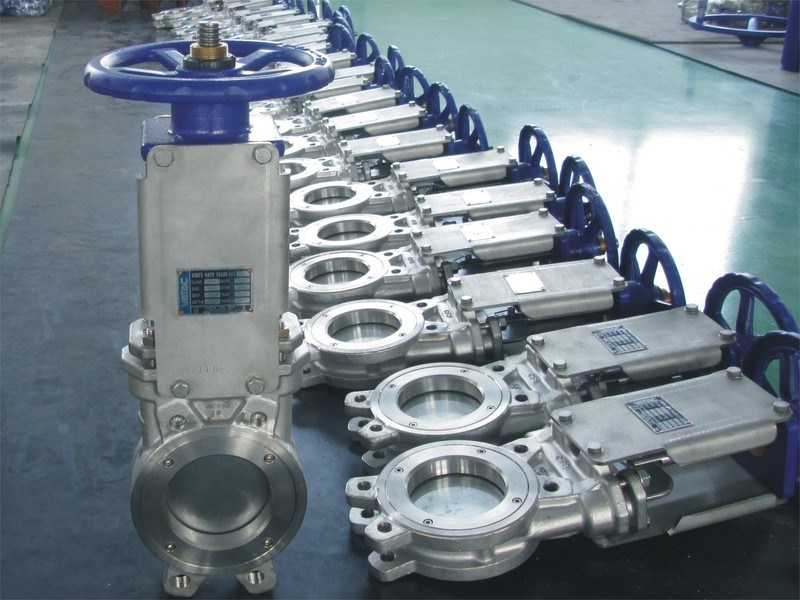

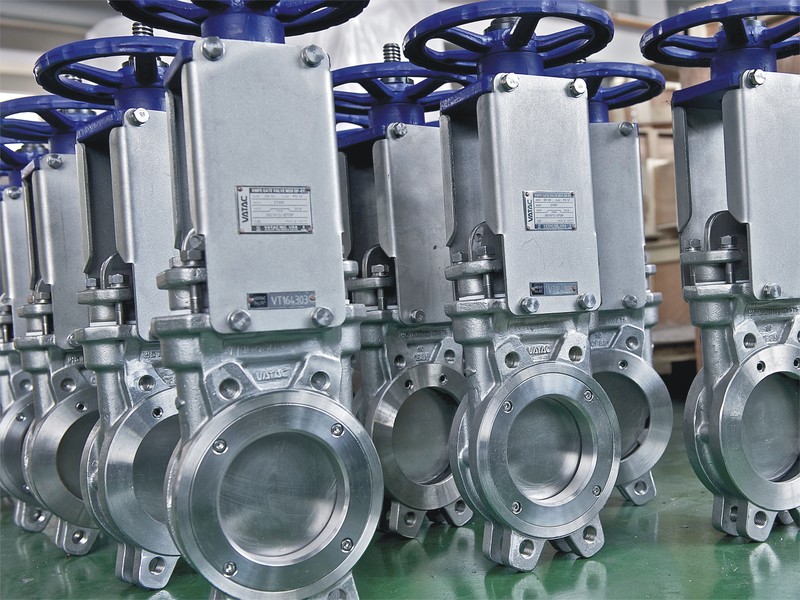

Vatac Metal Seat Wafer Knife Gate Valves are designed as metal to metal seat for high Temperature and rough medium , Ends connections in Wafer. Size ranges from 2” to 60” diameter, pressures in PN6, PN10, PN16, ANSI # Class 125 & Class 150. A broad body and trim materials are selected and fabricated to suit for various service conditions

» Applications but not limited to areas of


◆ Pulp and Paper ◆ Power plants ◆ Wastewater treatment plants ◆ Chemical plants ◆ Food and Beverage ◆ Bulk handling ◆ Mining

» STANDARDS COMPLIANCE:

◆ MSS SP-81 ◆ ASME B16.10 ◆ ASME B16.5 ◆ ASME B16.47 ◆ ASME B16.34 ◆ AS 2129 T/D or T/E ◆ BS 4504 T/D or T/E ◆ MSS SP-55 ◆ EN 1092
» Optional top flanges to ISO 5211
» Qualified for both gaseous and liquid services
» Broad line of body and trim materials for a variety of medium service.
» MSS SP-81
» Uni- or Bi-direction
» Materials: Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel, Alloy Steel, Duplex steel
» Pressure Ratings: ANSI 150#, PN10, PN16
» Size Ranges: 2" to 60"-50mm to 1500mm (Larger sizes upon request)
» Without Bolted Bonnet
» Ends Connections: Wafer
» Actuations: Manual, Pneumatic, Electric, Hydraulic (Counterweight) & Electro-hydraulic
